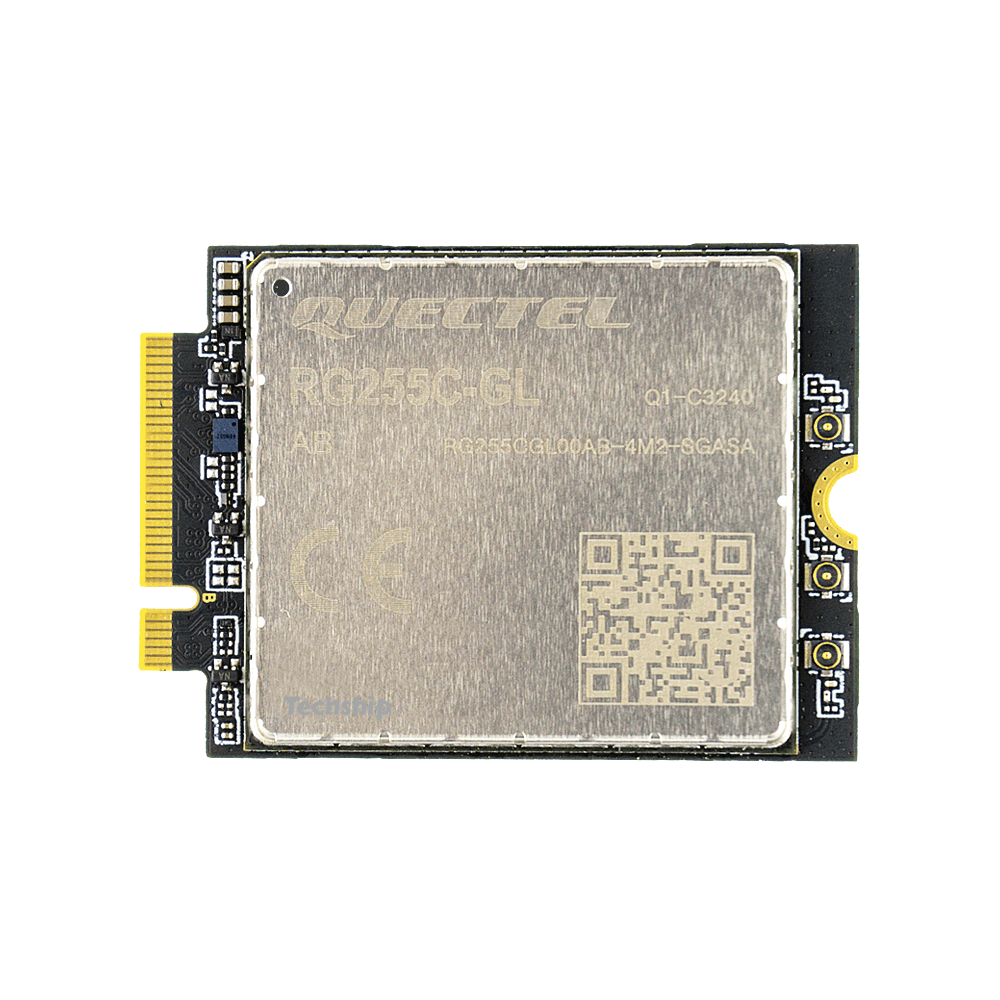

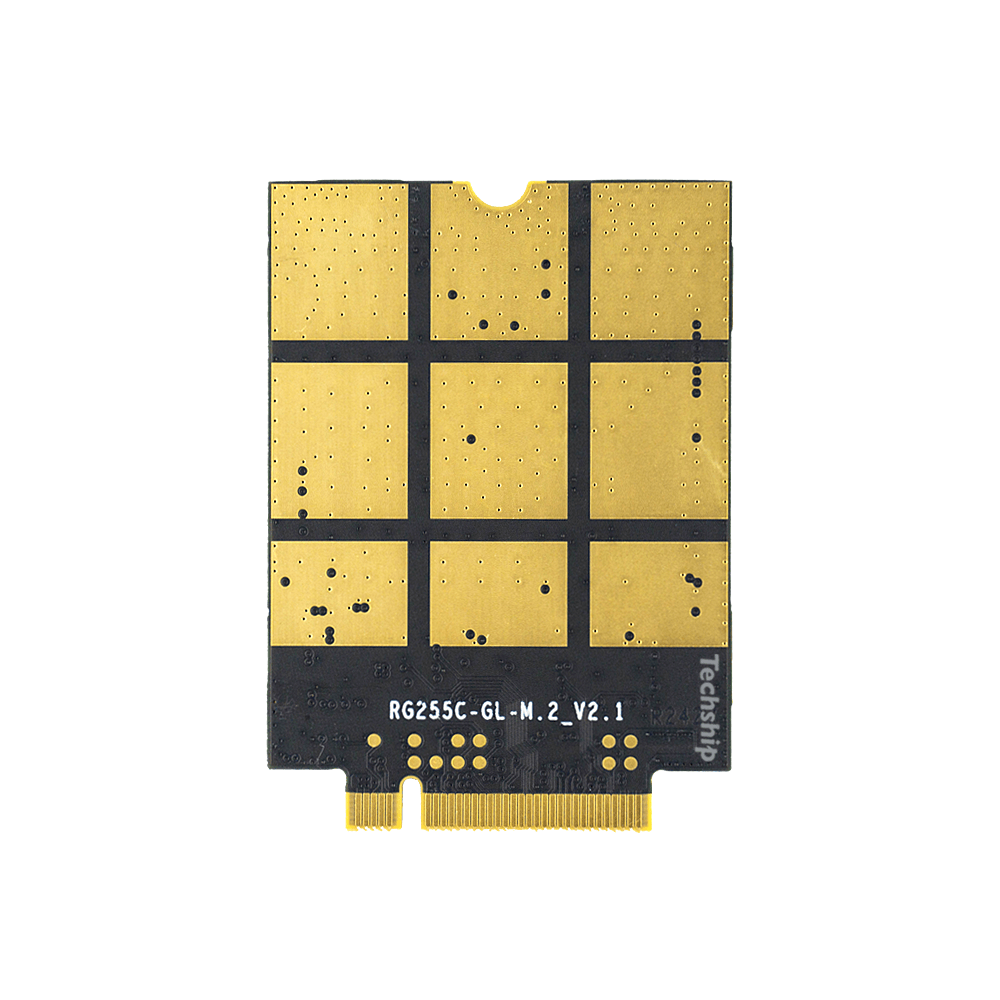

Quectel RG255C-GL 5G RedCap M.2

Quectel RG255C-GL M.2 is a 5G Sub-6 GHz M.2 module. Adopting the 3GPP Rel-17 RedCap technology, with features of 5G LAN*/ URLLC/ Slicing, the module supports a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA mode, and is backward compatible with Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design.

RG255C-GL M.2 module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo & NavlC). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, PCM, etc.) and abundant functionalities (USB drivers for Windows 8.1/ 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap application.

Key Benefits:

• M.2 form factor

• Worldwide 5G/ LTE coverage

• 5G SA mode with features of 5G LAN*/ URLLC/ Slicing

• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (Optional)

• Feature refinements: DFOTA and VoNR/VoLTE (Optional)

• PCIe 2.0 interface for Wi-Fi/Bluetooth
